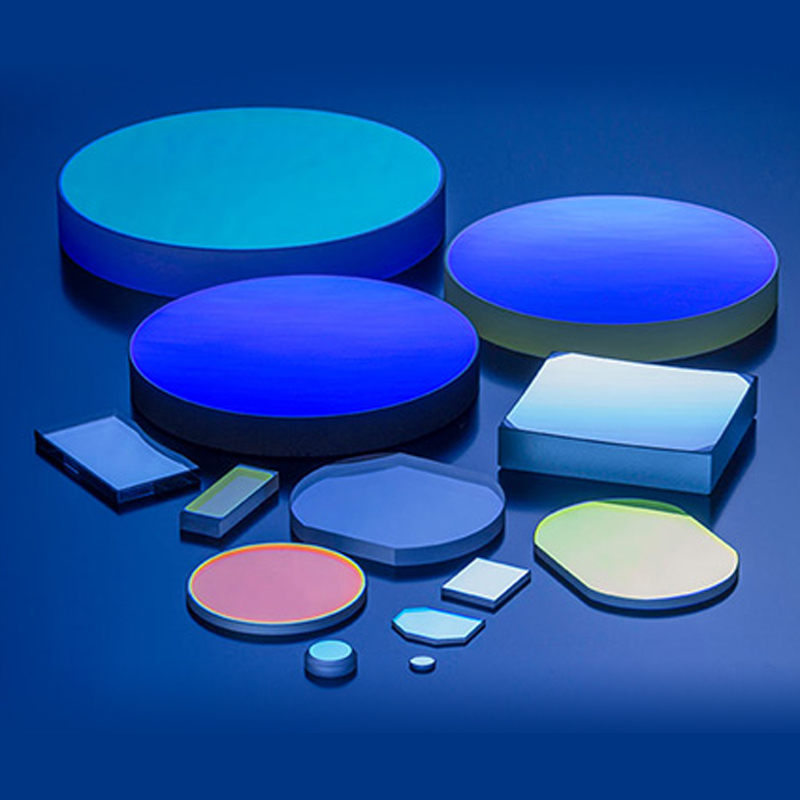

Laser protective window can also be called machine window or laser dust-proof lenses which is mainly used for laser cutting, laser welding, laser marking and laser carving. With two-side high injury threshold (>15J\/CM2) AR thin films, it can reduces reflection of lights so as to block debris splash and prevent splash damage lens.So Laser Protective Mirror is widely applied for laser industry as a general components.

General Specification:
Materials: Fused Silica Glass, Bk7, ZnSe
Size: D20-150*T1-10mm;Gap and slotted can be offered.
Dimension tolerances: 0.0/-0.1mm
Thickness tolerances: ±0.1mm
Clear aperture: ≥90%
Surface quality: 60/40-10/5
Surface flatness: 3λ- λ/10@633nm
Inverted angle: 0.2×45°
User laser power: 5kw-15kw; Other power can be tailor-made.
AR Coating: 900-1100nm; Other range can be tailor-made.
All specification can be custom-designed.

Advantage of our Protective Mirror:
1. Fast delivery with stocks
2. Qualified specification and size
3. Favorable price

Specification of Our Laser Protective Window in Stock:
Materials: Fused Silica Glass
Dimension tolerances: 0.0/-0.1mm
Thickness tolerances: ±0.1mm
Clear aperture: ≥90%
Surface quality: Usually 40/20(Dimension≤50.8mm) and 60/40(Dimension＞50.8mm)
Surface flatness: 2λ
Parallel degree: ≤1′
Inverted angle: 0.2×45°
User laser power:5kw-15kw
AR coating range: 900-1100nm;

 Delivery can be made within 1-3 days.Welcome to send your inquiry!

Wiping steps of the Laser Protective Mirror:
1. Wash your hands, blow or waiting for them to dry.
2. Wear a finger sleeve.
3. Take out mirror gently for examination.
4. Blow off the dust on the mirror surface with air balloon or nitrogen.
5. Stick the residue with the cotton ball of the wiping mirror liquid.
6. Gently wipe the mirror surface with a suitable amount of wiping liquid on the mirror paper drops. Do not wipe the lens surface in a rotating way.
7. Replace the mirror paper and repeat step 6. Do not reuse the same mirror paper.
8. Blow the surface of the lens clean with an air balloon.

Laser Lens Maintenance Taboo:
1. Do not touch the mirror by hand.
2. Do not blow the surface of mirrors with compressed air or with mouth to the surface.
3. Do not let the mirror surface touch hard objects directly.
4. Do not wipe mirrors with non-wiping paper (rod) or with force.
5. Do not press the mirror hard when disassembling and assembling the mirror.
